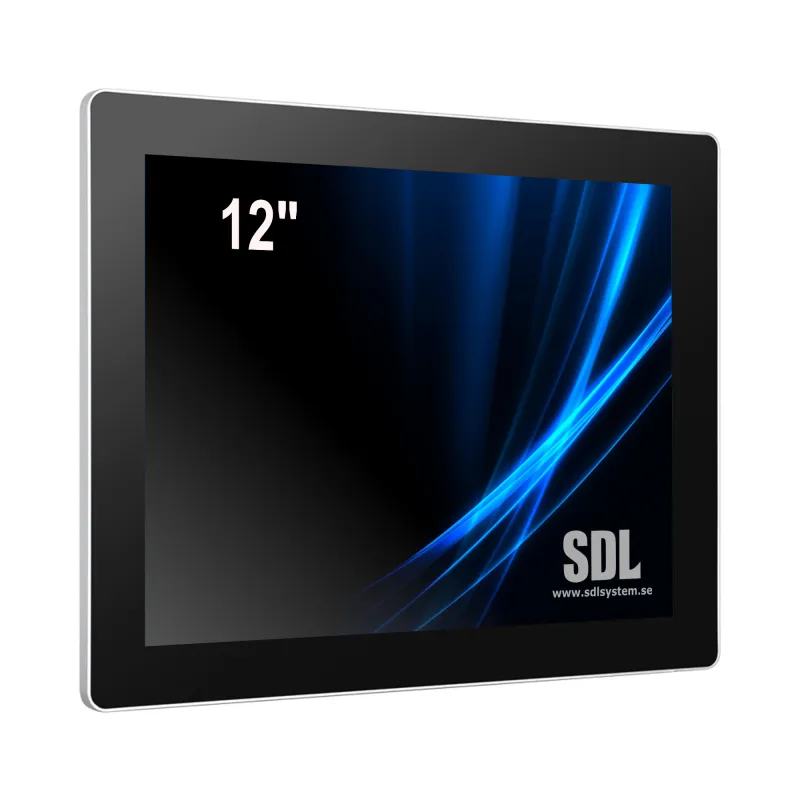

12 tums Panel PC, Intel J6412, 8/256 GB, PCAP touch, SDL120WMPCZ-PCT-J6412
- Tillverkare: SDL
- Modellkod: SDL120WMPCZ-PCT-J6412
- Lagerstatus: Beställningsvara ca 3-4 veckor
Pris vid förfrågan!
Specifikation
| Screen | |
| Display type | 12" TFT LCD screen |
| MAX resolution | 1024 x 768 (4:3） |
| Viewing angle(H/V) | 85/85/85/85 (L/R/U/D) |
| Luminance (cd/m²) | 500 cd/m²² (1000 cd/m² as option) |
| Contrast ratio | 1000:1 |
| Touch | |
| Touchscreen | Projection capacitive touch 10-point multi touch |
| Resistive touch single point (option) | |
| Non-touch (option) | |
| Power | |
| Power input | DC 12V-36V |
| Power adapter | 24V/2.5A |
| System | |
| CPU | Intel Celeron J6412, Frequency 2.00GHz (Max RF: 2.6GHz) |
| Memory/RAM | 8GB (Supports up to 32GB) |
| Storage | 256GB SSD (Optional: 128GB/512GB/1TB/2TB/4TB, etc.) |
| GPU | Intel UHD Graphics 16 EUs |
| Operating system | Support Windows 10/11, Linux etc |
| WI-FI | Dual Band 2.4GHz+5GHz |
| Bluetooth | BT5.0 |
| Watchdog Timer | Support |
| RTC real time clock | Support |
| Timer switch | Support |
| I/O | |
| PowerSW | 1 x PowerSW |
| Power input | 1 x 2P Phoenix Terminal (Supports 12-36V) |
| Phoenix terminal | 1 x 12P Phoenix Terminal (1 x 232/ 1 x 485/ 6 x NC with 6P interface reserved) |
| USB | 2 x USB2.0 & 2 x USB3.0 |
| CLEAR CMOS | 1 x CLEAR CMOS DIP Switch |
| AT-ATX | 1 x AT-ATX DIP Switch |
| HDMI | 1 x HDMI output, up to 4K |
| Ethernet | 2 x LAN, 10M/100M/1000M adaptive Ethernet, 3G/4G customized |
| Audio | 1 x Audio I/O, Support audio input and output |
| Serial port | 2 x COM (The default is RS232, optional RS485/RS422) |
| Wi-Fi antenna | 2 x Wi-Fi antenna |
| Speaker | 2 x (8Ω 2W) |
| Grounding | 1 x GND |
| Physical Characteristic | |
| Overall dimensions | W295.4 x H234.4 x D53mm |
| VESA | 75 x 75mm, 100 x 100mm, M4 screw holes |
| Material | Aluminum alloy |
| Color | Black, optional silver |
| Installation | Supports Wall-mounted/Desktop/VESA mount/Suspended mounting/Folding mounting/Back hanging, etc. |
| Environment | |
| Operating temperature | -10°C-60°C (-20°C-70°C can be customized) |
| Storage temperature | -20°C~70°C |
| Relative humidity | 95% non-condensing |
