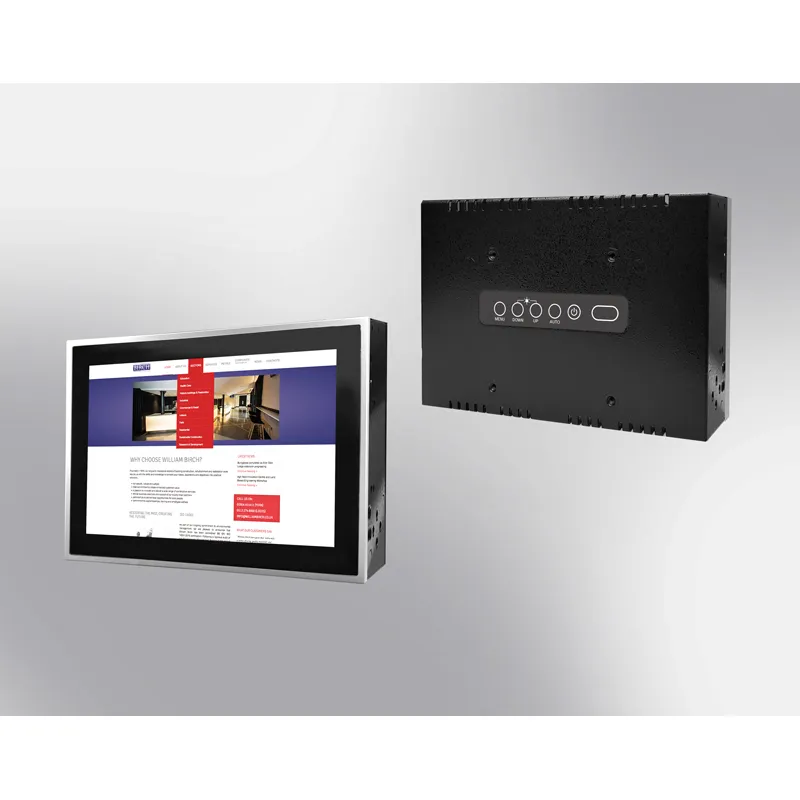

Industri monitor Zero-Bezel 7'' 16:9 1024x600
- Modellkod: 07ZCH0A6-WV
- Lagerstatus: Slut i lager
Zero Bezel Chassis, 7" LCD monitor, 800x600, LED 200 nits, VGA input
Teknisk data:
| PANEL | |
| Cell Type / Glass Surface | TFT LCD / Black Anti-Glare, low reflection coating |
| Aspect Ratio / Size | 16 : 9 / 7" viewable diagonal area |
| Active Area / Pixel Pitch | 153.60(H) x 90(V) mm / 0.150(H) x 0.150(V) mm |
| Native Resolution / Colors | 1024(H) x 600(V) / 262 K |
| Brightness / Contrast | 200 cd/m2 (typ) / 700 : 1 |
| Response Time | ≦ 16 ms |
| Viewing Angle (typical) | H. 150° (-75° ~ +75°) , V. 140° (-70° ~ 70°) |
| Light Source | LED backlight, Long life, 35,000 hrs (typ) |
| INPUT SOURCES | |
| Signal | Analog RGB (0.7/1.0 Vp-p, 75 ohms) |
| Sync | Separate Sync, Composite Sync, Sync On Green |
| Frequency | Fh : 30 - 82Khz , Fv : 50 -75Hz |
| Audio System | 2W speaker x 2 |
| INPUT TERMINALS | |
| Connectors | 1 x VGA |
| Audio | 1 x PC Audio (Stereo Headphone Jack) |
| Power | 12V DC Plug |
| CONVENIENT FEATURES | |
| Auto Calibration | |
| Back Light Adjustment | |
| Plug&Play | |
| OSD Multi-Languages | |
| Wall Mount Ready (VESA 75 x 75 mm) | |
| POWER | |
| External AC-to-12VDC power adapter with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz (ingår) | |
| Operation / Power Saving | 9.625 watt , < 2 watt (Support DPMS) |
| Operating Temperature / Humidity | 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation) |
| Storage Temperature / Humidity | -20°C ~ 60°C (-4°F ~ 140°F) , 10% ~ 90% (no condensation) |
| Color | Black or Stainless Enclosure |
| Certification | FCC , CE |
| Dimentions | 206 x 141 x 68 |
| Weight | N.W. / G.W. 3 Kgs / 4 Kgs |
Viss information kan förändras beroende på tillval och optioner
