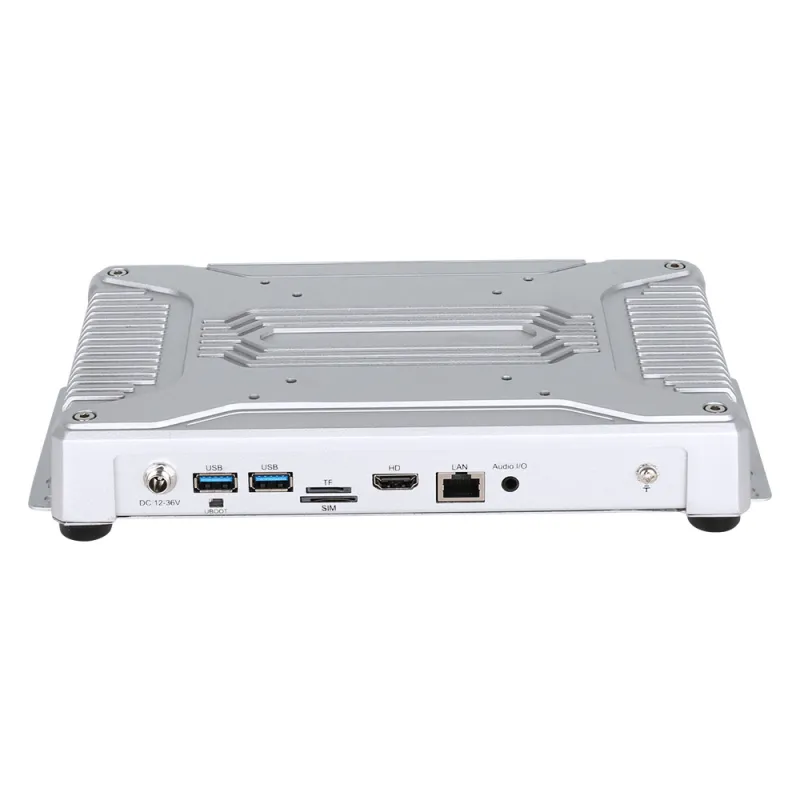

Industriell box-PC ARM RK3568 2G RAM 32GB EMMC SDLICC-RK3568
- Tillverkare: SDL
- Modellkod: SDLICC-RK3568
- Lagerstatus: I lager
-
3 753 SEK
- Exkl moms: 3 002 SEK
Robust och mångsidig industri-pc med aluminiumchassi, designad för tuffa miljöer. Perfekt för kontrollrum, processindustri, kommunikationssystem m.m.
- Gjutet tätt chassi i aluminum
- Helt fläktlös
- 12-36V drivspänning
- Många anslutningsmöjlighter
- Flexibla expansionemöjlighter
- Designad för 24/7 drift
Läs mer om denna produkt och olika varianter på familjesidan (klicka här).
Teknisk data:
| System | |
| CPU | RK3568 Quad-core 64-bit Cortex-A55 up to 2.0GHz |
| GPU | ARM Mali-G52 2EE |
| NPU | 1TOPS AI computing power |
| Memory/RAM | 2GB LPDDR4 (optional 4GB/8GB) |
| Storage | 32GB EMMC (optional 64GB/128GB) |
| SATA | 1×SATA hard drive interface |
| Built-in ROM | 4KB EEPROM |
| Wi-Fi | Single Band 2.4GHz |
| Bluetooth | BT5.0 |
| Operating system | Android 14 (Linux/Ubuntu/Debian as option) |
| Decoding Resolution | Supports up to 8K/60Hz |
| 4G | 4G module interface with built-in MINI PCIE |
| Network support | 4G, Ethernet, WiFi/Bluetooth, wireless peripheral expansion |
| I/O | |
| PowerSW | 1×PowerSW |
| Power interface | Threaded DC Port (Diameter 5.5×2.1mm) |
| Phoenix terminal | 12 pins terminal (DC in 12-36V / RS232×1 / RS485×1 / CAN×1 / GPIO×3) |
| USB | 2×USB3.0, 2×USB2.0 |
| UBOOT | 1×UBOOT |
| HDMI | 1×HDMI (supports up to 4K output) |
| Ethernet | 1×10/100/1000M adaptive Ethernet |
| Headphone | 3.5mm standard connector |
| SIM | 1×SIM (supports multiple standards depending on 3G/4G module) |
| TF | Supports TF expansion card (1×TF slot) |
| GPS | External GPS (optional) |
| Serial port | 2×RS232 + motherboard: 5×serial sockets (1×RS232, 1×RS485, 1×TTL, 2×RS232/TTL switching) |
| Enviroment | |
| Operating temperature | -10°C ~ 60°C (-20°C ~ 70°C customizable) |
| Storage temperature | -20°C ~ 70°C |
| Relative humidity | 95% non-condensing |
| Power | |
| Power input | 12v-36v power input |
| Power adapter | 24V/2.5A |
| Physical data | |
| Size | 239.5 x 148.4 x 42.8 mm (w.o. side brackets) (W x D x H) |
| Bare Machine weight | 1.2KG |
| Overall weight | 1.6KG |
| Fuselage Material | All aluminum alloy |
| Installation method | Support desktop and rack installation |
| Body color | Technology silver, classic black |
| Warrenty | |
| Warranty policy | 1 year |
