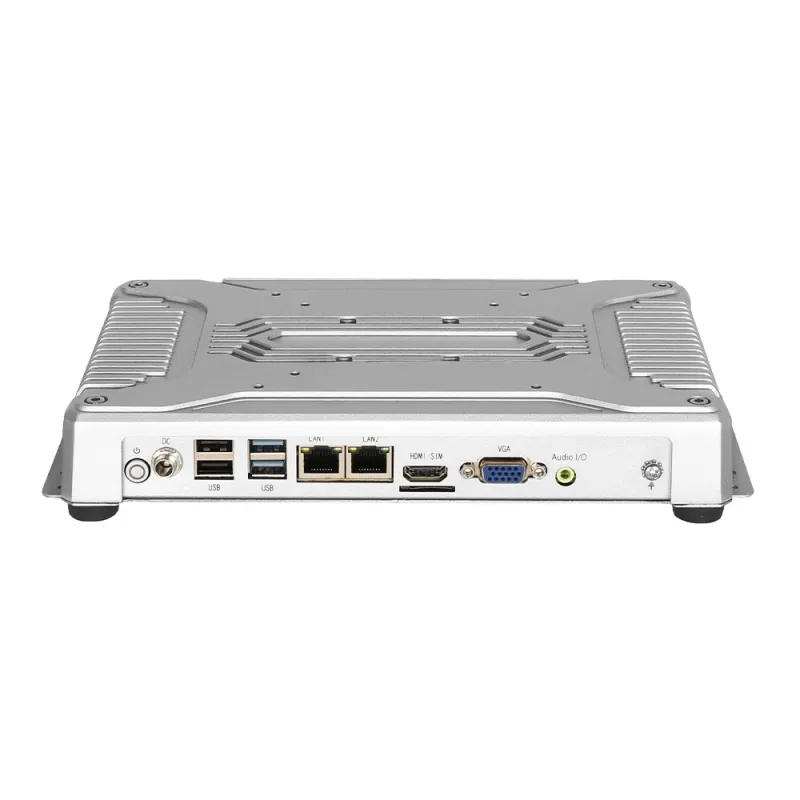

Industriell box-PC Intel i3 8G RAM 256GB SSD SDLICC-i3-1215

Tillverkare: SDL
Modellkod: SDLICC-i3-1215
Lagerstatus: I lager

8 940 SEK

Exkl moms: 7 152 SEK

Beskrivning

Robust och mångsidig industri-pc med aluminiumchassi, designad för tuffa miljöer. Perfekt för kontrollrum, processindustri, kommunikationssystem m.m.

Gjutet tätt chassi i aluminum
Helt fläktlös
12-36V drivspänning
Många anslutningsmöjlighter
Flexibla expansionemöjlighter
Designad för 24/7 drift

Läs mer om denna produkt och olika varianter på familjesidan (klicka här).

Teknisk data:

System
CPU	Intel Core i3-12th generation
Display Chips	Intel Bay Trail SOC chipset
Memory	8GB (supports up to 32GB)
Storage	256GB SSD (Optional 128GB/512GB/1T/2T/4T)
Display	Output 1×VGA, 1×HDMI
Audio	USB Voice Chip HS-100B, 2CH DAC with headphone amplifier
Network	2×Realtek PCI-E RTL8111H, 1000 Mbps
Wi-Fi	Dual Band 2.4GHz + 5GHz
Bluetooth	BT4.0
Operating System	Win10/11, Ubuntu/Centos/Redhat/Debian/Linux-Mint
MIC	Optional
RTC	Support
Timed switch on/off	Support
I/O
PowerSW	1×PowerSW
Power interface	Threaded DC port (5.5×2.5mm)
Phoenix terminal	12 pins (DC input 12-36V / RS232×1 / RS485×1 / GPIO×5)
Display Support	HDMI + VGA, max 1080P
USB	4×USB2.0, 2×USB3.0
LAN	2×10/100/1000M Ethernet
Headphone Jack	3.5mm standard connector
SIM	1×SIM (supports multiple standards depending on 3G/4G module)
Serial Ports	2×RS232
Enviroment
Operating Temperature	-10°C to +60°C (customizable -20°C to +70°C)
Storage Temperature	-20°C to +70°C
Working Humidity	95% non-condensing
Power
Power Input	12V–36V
Power Adapter	DC 24V/5A
	Physical data
Size	239.5 x 148.4 x 42.8 mm (w.o. side brackets) (W x D x H)
Material	All aluminum alloy
Body Color	Technology silver, classic black
Bare Weight	1.2 kg
Total Weight	1.6 kg
Installation	Desktop and rack installation
Warrenty
Warranty	1 year
