Industri monitor 10.1'' 16:9 HD
- Modellkod: 10CH16-HD
- Lagerstatus: Slut i lager

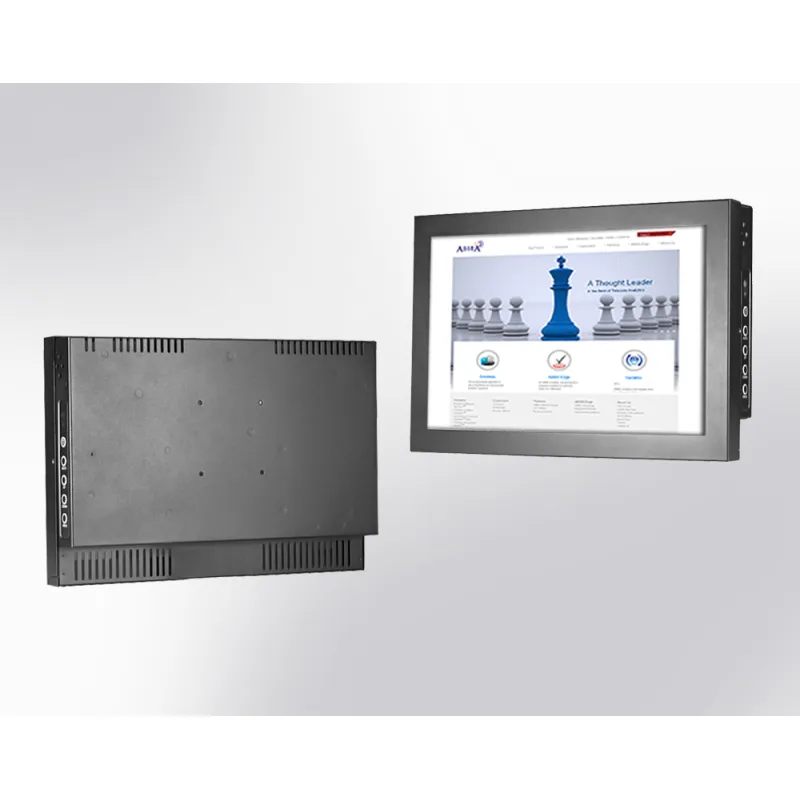

Chassis, 10.1" LCD monitor, 1366 x 768, LED 200 nits, VGA + DVI input
Teknisk data:
| PANEL | |
| Cell Type / Glass Surface | TFT LCD |
| Active Area / Pixel Pitch | Wide / 10.1" viewable diagonal area |
| Native Resolution / Colors | 222.72(H) x 125.28(V) mm / 0.1629(H) x 0.1629(V) mm |
| Brightness / Contrast | 200 cd/m2 (typ) / 500 : 1 |
| Response Time | ≦ 16 ms |
| Viewing Angle (typical) | H. 90° (- 45° ~ + 45°) , V. 50°(- 30° ~ + 30°) |
| Light Source | LED backlight, Long life, 35,000 hrs (typ) |
| INPUT SOURCE | |
| Signal | Analog RGB (0.7/1.0 Vp-p, 75 ohms) |
| Sync | Separate Sync, Composite Sync, Sync On Green |
| Frequency | Fh : 30 - 82Khz , Fv : 50 -75Hz |
| Audio | 2W speaker x 2 |
| INPUT TERMINALS | |
| Connectors | 1 x VGA + 1 x DVI |
| Audio | 1 x PC Audio (Stereo Headphone Jack) |
| Power | 1 x DC Power Plug, External AC-to-12VDC power adapter with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz (ingår) |
| CONVENIENT FEATURES | |
| Auto Calibration | |
| Back Light Adjustment | |
| Plug&Play | |
| OSD Multi-Languages | |
| Wall Mount Ready (VESA 75 x 75 mm) | |
| Operation / Power Saving | 3 watt , < 1 watt (Support DPMS) |
| Operation Temperature / Humidity | 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation) |
| Storage Temperature / Humidity | -20°C ~ 60°C (-4°F ~ 140°F) , 10% ~ 90% (no condensation) |
| Color | Black or Stainless Enclosure |
| Certification | FCC , CE |
| Dimensions | W x H x D = 272.6 x 172.6 x 51 mm |
| Weight | N.W. / G.W 2 Kgs / 3 Kgs |
Viss information kan förändras beroende på tillval och optioner
