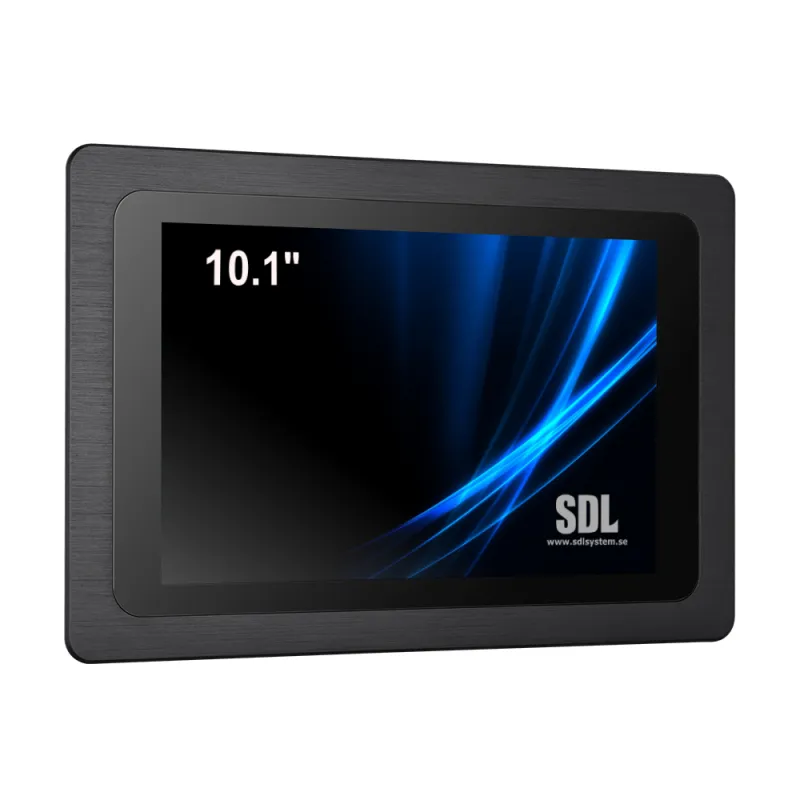

10.1 tums Panel PC, Intel J6412, 8/256 GB, PCAP touch, SDL101PMPC22-PCT-J6412
- Tillverkare: SDL
- Modellkod: SDL101PMPC22-PCT-J6412
- Lagerstatus: I lager
-
12 193 SEK
- Exkl moms: 9 754 SEK
- Konstruerad för 24/7 drift
- Fläktlös och helt flat front
- Utformad för inbyggnad i skåp, väggar etc..
- 12-36V drivspänning
- IP 65 front
- Olika touchtyper eller bara skyddsglas.
Teknisk data:
| Screen | |
| Size | 10.1" |
| Resolution | 1280x800 |
| Screen Scale | 16:10 |
| Brightness | 300 cd/m2 |
| Contrast | 1000:1 |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Touch | |
| Touchscreen | Projection capacitive touch 10-point multi touch |
| Resistive touch single point (option) | |
| Non-touch (option) | |
| System | |
| CPU | Intel Celeron J6412 quad-core 2.0GHz CPU |
| Integrated graphics | Intel UHD Graphics 16 |
| Memory/RAM | 8GB (Supports up to 16GB) |
| Storage | 256GB SSD (Optional: 128GB~512GB/1~4TB SSD, 1TB/2TB HDD) |
| Wi-Fi | Dual Band 2.4GHz+5GH |
| Network | 2*Realtek PCI-E NIC RTL8111H for 1G |
| Operating system | Support Windows 10/11, Linux etc. |
| Bluetooth | BT4.0 |
| Watchdog Timer | Support |
| Timer switch | Support |
| Speaker | 2*(8Ω2W) |
| I/O | |
| Power | 1*Threaded DC connector (Diameter 5.5*2.5mm) or Phoenix terminal |
| Phoenix terminal | 1*12P Phoenix terminal (DC 12-36V in, 1*RS232, 1*RS485, 5*GPIO*5) |
| USB | 2*USB2.0, 2*USB3.0 |
| Ethernet | 2*RJ45, 10M/100M/1000M |
| HDMI | 1*HDMI output, up to 4K |
| VGA | 1*VGA |
| SIM | 1*SIM card slot (for use with 3G/4G module) |
| Audio | 1*Audio I/O, support audio input and output |
| Serial port | 1*COM (The default is RS232, optional RS485/RS422) |
| Wi-Fi antenna | 2*Wi-Fi antenna |
| Grounding | 1*GND |
| Power | |
| Power input | 12V-36V DC |
| Power adapter | 24V/2.5A |
| Environment | |
| Operating temperature | -10°C-60°C (-20°C-70°C can be customized) |
| Storage temperature | -20°C-70°C |
| Relative humidity | 95% non-condensing |
| Physical Characteristic | |
| Overall dimensions | W293.6x H193.6x D53.5mm |
| Installation size | W276.5 x H176.5mm |
| Material | Aluminum alloy |
| Color | Black, optional silver |
| Installation | Supports Panel-mount/Wall-embedded/Wall-mounted/Desktop/VESA mount 75x75, 100x100 mm, etc. |
