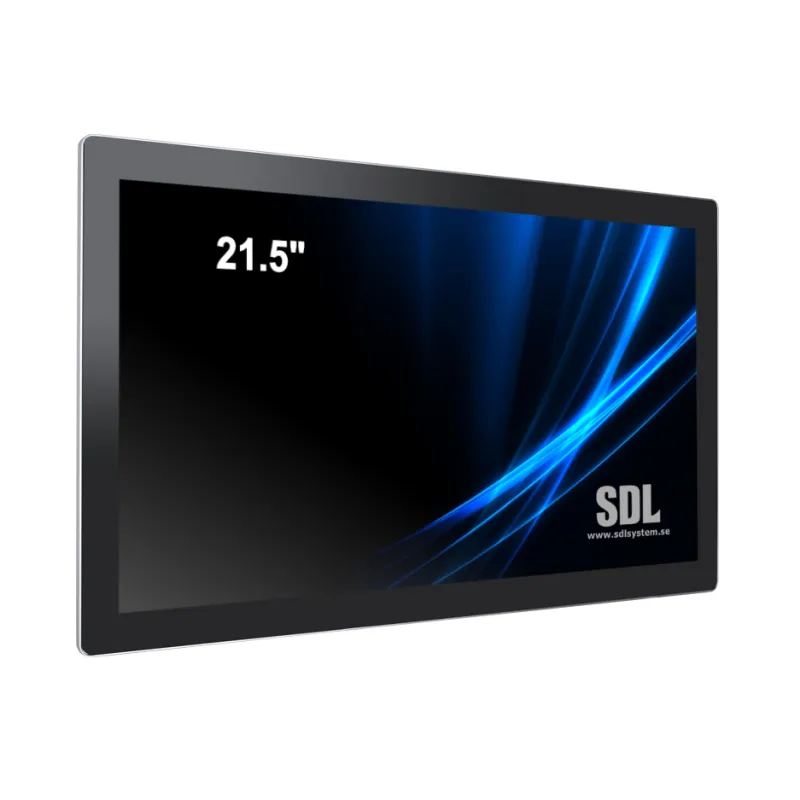

21,5 tums pekskärm SDL215WMZ-PCT
- Tillverkare: SDL
- Modellkod: SDL215WMZ-PCT
- Lagerstatus: I lager
-
7 095 SEK
- Exkl moms: 5 676 SEK
- Robust industriell konstruktion för 24/7 dift
- HDMl, DP, VGA ansluting
- 12-36V drivspänning
- Utformad för montering på VESA fäste
- Dammtät och vattentät front.
- Olika touchtyper eller bara skyddsglas.
Teknisk data:
| Screen | |
| Resolution | 1920*1080 (16:9) |
| Display type | 21.5 TFT LCD screen |
| Viewing angle(H/V) | 89/89/89/89 (L/R/U/D) |
| Luminance (cd/m²) | 250 cd/m² |
| Contrast ratio | 1000:1 |
| Touch | |
| Touchscreen | Projection capacitive touch 10-point multi touch |
| Resistive touch single point (option) | |
| Non-touch (option) | |
| Interface | USB (RS232 as option) |
| Interface | |
| Phoenix terminal | 1*2P Power input DC 12V-36V |
| HDMI | 1*HDMI, Support HDMI data input, With a maximum of 1080P |
| Touch | 1*RJ45 port (USB defined), comes standard with RJ45 to USB touch cable |
| VGA | 1*VGA, Analog signal transmission |
| DP | 1*DP |
| Audio interface | 1*Audio I/O, Support audio input and output |
| Grounding | 1*GND |
| Power | |
| Power input | DC 12V-36V Phoenix terminal |
| Power adapter | 24V/1.5A |
| Environment | |
| Operating temperature | -10°C-60°C (-20°C-70°C can be customized) |
| Storage temperature | -20°C-70°C |
| Relative humidity | 95% non-condensing |
| Physical Characteristic | |
| Overall dimensions | W526.4x H321.4x D49mm |
| Installation size | W507.4 x H302.4mm |
| Material | Aluminum alloy |
| Color | Black, optional silver |
| Installation | Support VESA 75x75, 100x100 mm |
